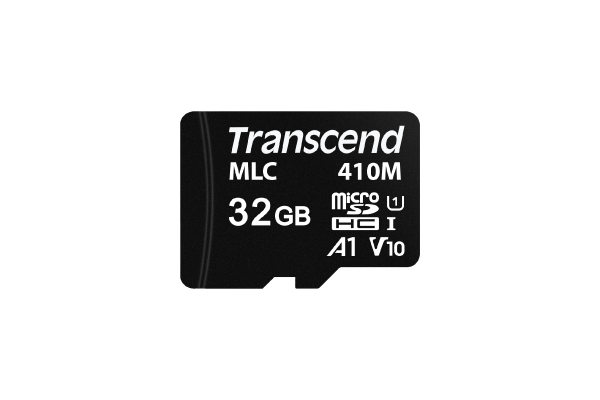

microSD Cards

USD410M

Built with top-quality MLC NAND flash chips, Transcend's microSD/SDHC 410M memory cards can endure operating temperatures from -25°C to 85°C; and set a new standard for consistent, long-term performance even in the harshest conditions. Moreover, these cards offer high-speed data transfer rates to satisfy the demanding performance and reliability requirements of embedded systems, such as transportation, telecommunication, and IoT applications.


Firmware Features

  • Built-in ECC (Error Correction Code) functionality
  • Early Move
  • Wear-Leveling
  • Supports password protection and secure erase via Scope Pro

Hardware Features

  • Compliant with RoHS 2.0 standards
  • Electrostatic protection (ESD IEC 61000-4-2)
  • Compliant with SD specification 5.1
  • Compliant with UHS-I
  • Compliant with Speed Class 10
  • Compliant with Application Performance Class 1 (A1)
  • Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
  • Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
*Transcend's microSD 410M 2GB features MLC NAND flash, without UHS-I or A1 compliances
*Scope Pro is available on Windows OS only when the RDF5 is used with the SD/microSD cards.

Specifications

Appearance

Dimensions11 mm x 15 mm x 1 mm (0.43" x 0.59" x 0.04")
Form Factor
  • microSD flash card

Storage

Flash Type
  • MLC NAND flash
Capacity
  • 2 GB
  • 4 GB
  • 8 GB
  • 16 GB
  • 32 GB

Operating Environment

Operating Voltage
  • 2.7V ~ 3.6V
Drop Test
  • 1.5m free fall
Operating Temperature
  • Standard Temp.
    -25°C (-13°F) ~ 85°C (185°F)
  • Wide Temp.
    °C (°F) ~ °C (°F)
Storage Temperature-40°C (-40°F) ~ 85°C (185°F)
Humidity0% ~ 95%
Shock
  • Acceleration: 490 m/s² (standard holding time: 11 ms, semi-sine wave, velocity change: 3.44 m/s)
Vibration (Operating)20 G (peak-to-peak), 20 Hz ~ 2,000 Hz (frequency)

Power

Power Consumption (Max.)0.72 watt(s)

Performance

Read Speed (Max.)Up to 95 MB/s
Write Speed (Max.)Up to 50 MB/s
Terabytes Written (TBW)Up to 86 TBW
Note
  • Speed may vary due to host hardware, software, usage, and storage capacity.
  • Terabytes Written (TBW) expresses the endurance under the highest capacity.

Warranty

Certificate
  • CE
  • UKCA
  • FCC
Warranty
  • Three-year Limited Warranty
Warranty Policy
  • Please click here for more information about the Transcend Warranty Policy.
  • Due to the complexity and variety of industrial applications, Transcend cannot guarantee 100% compatibility with all platforms and under all scenarios. For special applications and environments, it is strongly suggested that you contact Transcend beforehand for clarification.

Order Information

2GB
  • TS2GUSD410M microSD
4GB
  • TS4GUSD410M microSDHC, V10, U1, A1
8GB
  • TS8GUSD410M microSDHC, V10, U1, A1
16GB
  • TS16GUSD410M microSDHC, V10, U1, A1
32GB
  • TS32GUSD410M microSDHC, V10, U1, A1
